Brief Introduction:
Large size Flatbed Laser Machine series are suitable for all nonmetal materials processing with mass production, espe cially for acrylic, wood large thickness cutting.
Applicable Materials & Industries:
Applicable Materials: Acrylic/ Plexiglas/ double color board/ ABS board/PVC board/ bamboo/ MDF/ wood/ paper /leather/ fabric/ wool/ rubber/ resin etc.
Applicable Industries: Advertisement( marks/ signs/ billboards/plates) bamboo & wood product/ art craft work/ ornament/ papercutting /cloth/ fabric/ hang bag/ glove/ garment/ leather/ embroidery/
shoemaking/ toy/ crystal/ packing & printing/ panel/ mould/ decoration/upholster and other related industries.
|
Name |

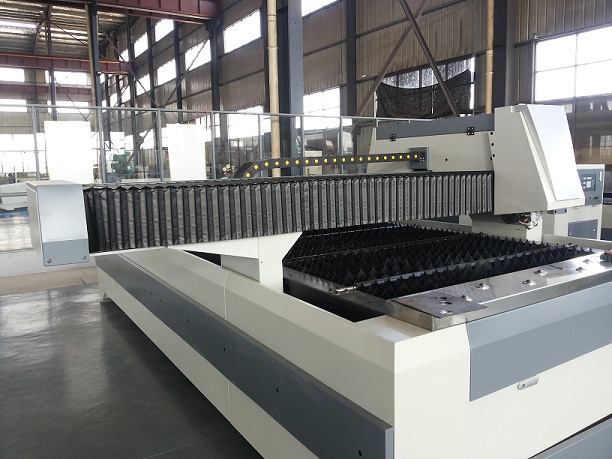

YAG laser cutting machine |
|
Equipment model |
YCS50B |
YCS65B |
YCS82B |
|
Laser media |
ND：YAG |
ND：YAG |
ND：YAG |
|
Wave length |
1064nm |
1064nm |
1064nm |
|
Pulse frequency |
1～500Hz adjustable |
1～500Hz adjustable |
1～500Hz adjustable |
|
Min.laser line width |
≥0.12mm |
≥0.12mm |
≥0.12mm |
|
Max.laser power |
500W |
650W |
820W |
|
Effective processing area |
1500mm*3000mm |
1500mm*3000mm |
1500mm*3000mm |
|
repeated positioning accuracy |
±0.05mm |
±0.05mm |
±0.05mm |
|
cut geometric accuracy (thickness <2mm) |
±0.1mm/1000mm |
±0.1mm/1000mm |
±0.1mm/1000mm |
|
Max cutting thickness (different metal material component, the effect requires cutting different thickness) |
stainless |
≤3mm |
≤4mm |
≤5mm |
|
Carbon steel |
≤6mm |
≤8mm |
≤9mm |
|
cutting speed (different metal material component, performance requirements of different cutting speed) |
1 mm Carbon steel |
About 3m |
About 3.5m |
About 4m |
|
1 mm stainless |
About 2.5m |
About 3m |
About 3.5m |
|
Power |
About 12KW |
About 16KW |
about≤ 19KW |
|
Voltage |
380V/50Hz/60A |
|
Overall size |
4200x2200x1440 |
|
weight |
3.6 T |
