SPECIFICATION |
UNIT |
Z3050 x 16 |

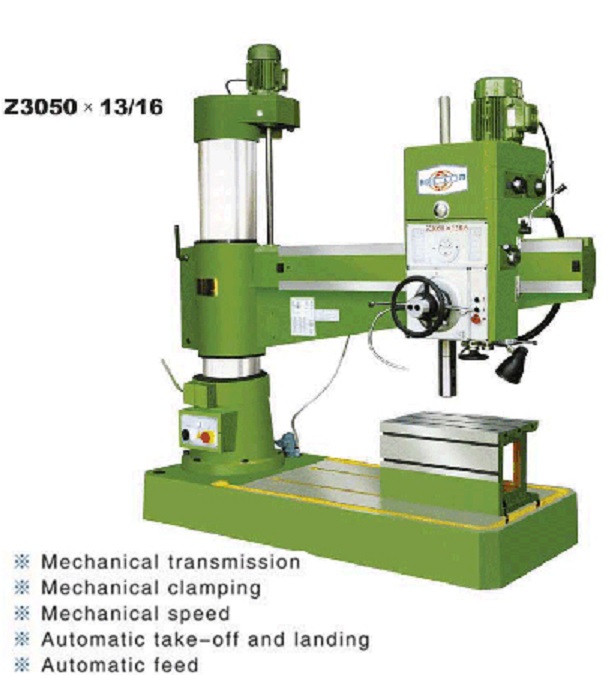

Z3050 x 13/16 |
Z3050 x 10/13 |
Z3050 x 10 |
Z3050 x 9/10 |
|
Max. drilling diameter |
mm |
50 |
Cast 50
Steel 45 |
Cast 40
Steel 32 |
Cast 35
Steel 30 |
Cast 32
Steel 27 |
|
Distance between spindle nose and working surface of base plate |
mm |
320-1220 |
260-1150 |
260-1050 |
260-1000 |
220-980 |
|
Distance between spindle centerline and column generatrix |
mm |
350-1600 |
360-1300 |
360-1000 |
360-1000 |
260-660/780
|
|
360-1600 |
360-1300 |
|
Spindle travel |
mm |
300 |
220 |
200 |
200 |
120 |
|
Spindle taper(Morse No.) |
--- |
5 |
5 |
- |
- |
- |
|
Range of spindle speeds |
r.p.m |
25-2000 |
78-1100 |
75-1200 |
75-1200 |
108,162,262,
398,665,1000 |
|
Number of spindle speeds |
--- |
16 |
6 |
- |
- |
- |
|
Range of spindle feeds |
mm/r |
0.10-0.40 |
0.10-0.56 |
0.10,0.16,0.25 |
0.10,0.16,0.25 |
- |
|
Number of spindle feeds |
--- |
16 |
3 |
- |
- |
- |
|
Swivel angle of the rocker |
° |
360 |
360 |
- |
- |
- |
|
Main motor power |
kw |
4 |
4 |
2.2 |
1.5/2.2 |
1.5/2.2 |
|
Motor power for up&down |
kw |
1.5 |
1.5 |
- |
- |
- |
|
N.W/G.W |
kg |
3000/3500 |
2400/2600 |
1280/1500 |
1000/1500 |
800/900 |
|
|
2800/3000 |
1330/1900 |
950/1200 |
|
|
Overall dimensions(L*W*H) |
mm |
2200*900*2550 |
1950*810*2450 |
1280*705*2200 |
1500*800*2150 |
1350*700*1880 |
|
2170*810*2450 |
1800*810*2200 |
1500*705*2020 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
