Features and characteristics:

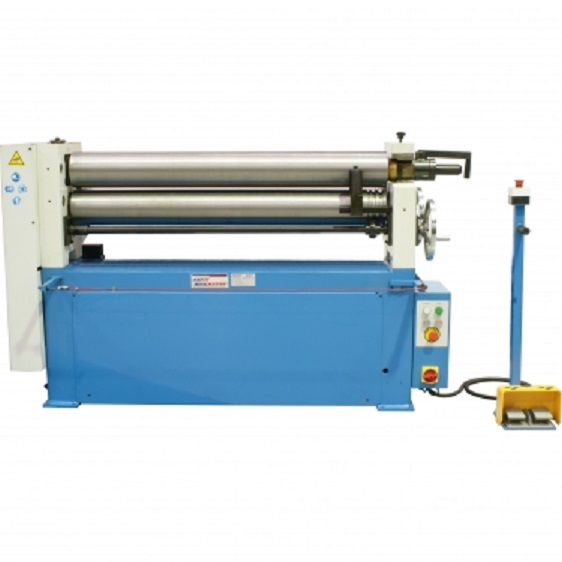

The machine adopts the 3-roller asymmetrical structure with the upper roller as the main drive and the lower roller making vertical movement so as to clamp the plate materials tight. The main drive comes from the engagement between the gear of the lower roller and the gear of the upper roller. The side roller makes elevating movements and has the function of preliminary bending and rolling. The machine is characterized with compact structure and convenient operation and maintenance.
|
Specification |
Max.thickness (mm) |
Max.
width (mm) |
Yielding limit (mm) |
Min full loading dia( mm) |
Dia of roller (mm) |
Motor power (kw) |
Net weight(kkgs |
|
W11-1.5×1000 |
1.5 |
1000 |
245 |
200 |
50 |
1.5 |
280 |
|
W11-2×1020 |
2 |
1020 |
245 |
200 |
50 |
1.5 |
260 |
|
W11-2.5×1300 |
2.5 |
1300 |
245 |
250 |
90 |
1.5 |
470 |
|
W11-4.5×1300 |
2 |
2000 |
245 |
250 |
120 |
2.2 |
660 |
|
W11-3.5×1550 |
4 |
1000 |
245 |
300 |
120 |
2.2 |
750 |
|
W11-3×2020 |
3 |
2020 |
245 |
300 |
127 |
4 |
950 |
