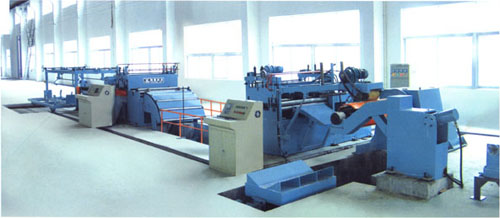

Automatic Cut To Length Machine Line For Carbon Steel , Galvanized Steel
- applied to:carbon cold and hot rolled steel
- thickness:2mm
- Width(max):1250mm
- Weight:15T
- Line speed:0-80m/min
I. Composed devices
1.Hydraulic entry car
◆The car can move levelly and vertically, which is convenient for putting the steel coils to the un-coiler.
◆It is driven vertically by hydraulic pressure and the level movement is driven by cycloid electromotor .
2. Cantilever decoiler
◆supporting steel rolls and uncoiling.
◆the core can ensure the expand range φ510 of the coils inner diameter
◆It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever .
◆40N.m moment motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
3. Fourfold pre-leveling machine
◆It is equipped with the press and pinch device at the entry which is driven by hydraulic.
◆It is composed of 17 leveling rollers, 2 groups of supporting rollers ,driving device and 2 pinch rollers and frame. Both sides of each rolling wheel is transmitted by needle pins all are the main force rollers.the total quantity of the rollers is 19, the diameter is 60and the distance between the rollers is 65mm, with supporting rollers.
◆The function of the supporting roller is to balance the leveling rollers force and reduce the friction to the rollers.
◆The working rollers can be adjusted the gap electrically which is controlled by 2 hand wheel to ensure the leveling quality.
◆Driving model: all the independent rollers and gear box are driven by 22kw frequency control motor
4. Loop
Function : it is used to eliminate the different speed and make the plates which in wrong rail to back the right way. At first, it is used the oil cylinder to lifting the supporting and transition plates to make the head pass . when working , the transition and supporting plates lift down , the steel plates will be stored in the pit.
5. side guide device
◆It uses the vertical roller-wheel on the both sides to direct strips into straightening device and cutting machine.
◆The stand rollers on both sides are adjusted by lead screw. The range of the width is 300-750mm
6. servo precision straightening machine
◆It is controlled by servo electromotor and used to regulate for high speed feed and precise length control
◆The operation is done at the control table with programmable control.
◆Drive model:5kw servo motor with precise decelerating transmission and synchronous to transport the belt to feed rollers
7． Hydraulic cutter
◆shear model: cut from up to down hydraulically which is cooperate with the signal direct from the feeder and shear automatically
◆Adopt gap adjusting design to cut the materials and can shear 3mm steel plate safely after heat treatment
8. Transportation table
◆Transportation belt is skidproof and wearable
◆Drive: cooperate with the line speed and is transmitted by 2.2KW frequency control motor
9. Hydraulic lifting table
◆the length of plates can range from 500-2500mm( which can be customized)
◆The width cab be ranged from300 to 1250mm.
10. Pneumatic stacker device
◆The plates are piled Pneumatically and PLC controls the lifting.
11. Hydraulic system
◆Ensure the using of every hydraulic parts
◆6.3-16Mp The working pressure of the hydraulic system is 6.3-16Mpa
12. Electrical system
◆Adopt the PLC control mode ,It is controlled by LCD screen with fixed-length cutting by codes and count automatically .
Specifications:
|
applied to |
carbon cold and hot rolled steel |
|
material quality |
first class steel coils of the international standard |
|
tensile strength |
δb≤450Mpa |
|
thickness |
2mm |
|
Width(max) |
1250mm |
|
Coil ID |
508mm |
|
Coil OD |
1400mm |
|
Weight |
5T |
|
diameter of leveling rollers |
Φ60 |
|
distance of leveling rollers |
65 |
|
material of leveling roller |
GCr15,hardness:HRC55-60 |
|
total weight of machines |
around 30T |
|
diagonal tolerance |
≤±1mm/2000mm |
|
length tolerance |
≤±0.5mm/2000mm |
|
Line speed |
0-80m/min |
|
Power |
380V/50Hz/3Ph |
|
capacity |
around 90Kw |
Applications:
--------It used to do the high speed decoiling,straightening and cutting for the CR,stainless steel,galvanized steel,ect.
--------Make coil to sheets by the cross-cutting. To do the fixed length cutting with the high precision
--------Automatic design make the production line easy and convenient to operate and can be packed automatically
Competitive Advantage:
1.full automatic
2.high speed
3.perfect technic
4.high performance price ratio
The sheet metal uncoil-level shearing line gather the function of shearing steel plates with high efficiency according to the specified length. All kinds of rooted steel plate can be uncoiled leveled, length specified, stroseparated and then sheared into various specifications of sheet materials. To enterprises demanding various specification of sheet materials in large amount, the cost, ensure quality and increase production efficiency. Installed the lines with digital controlled rotary press machine and double section shape at once, and it is indispensable high efficient processing machine in modern enterprises.
