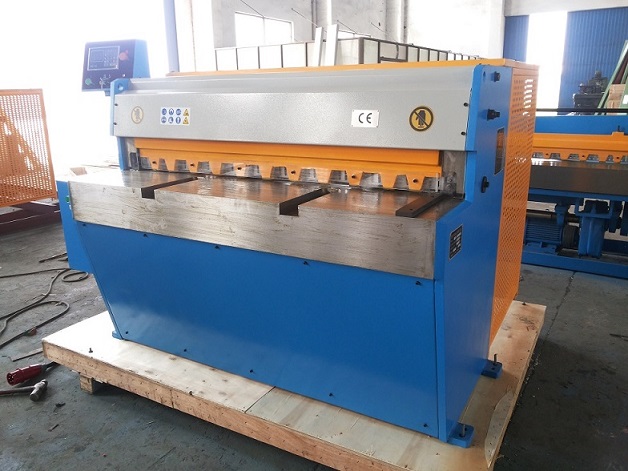

QH11D series mechanic true cut shearing machine
Technical specification:
|
Specification
parameter |
3.5×1250 |
3.2×2000 |
3.2×2500 |
3.2×3050 |
|
Shearing thickness(mm) |
3.5 |
3.2 |
3.2 |
3.2 |
|
Shearing width(mm) |
1250 |
2000 |
2500 |
3050 |
|
Shearing angle(º) |
1 º30’ |
1º20’ |
1º20’ |
1 º30’ |
|
Number of stroke(min-1) |
47 |
47 |
47 |
47 |
|
Back gauge range(mm) |
0~650 |
0~650 |
0~650 |
0~650 |
|
0~750（optional） |
0~750(optional) |
0~750(optional) |
0~750(optional) |
|
Height of the worktable(mm) |
800 |
800 |
800 |
860 |
|
Motor power（KW） |
5．5 |
7．5 |
11 |
11 |
|
Overall dimension(mm) |
Length |
1860 |
2624 |
3124 |
3599 |
|
Width |
2210 |
2210 |
2210 |
2448 |
|
Height |
1180 |
1180 |
1180 |
1290 |
|
|
|
|
|
About 3.2 Ton |
