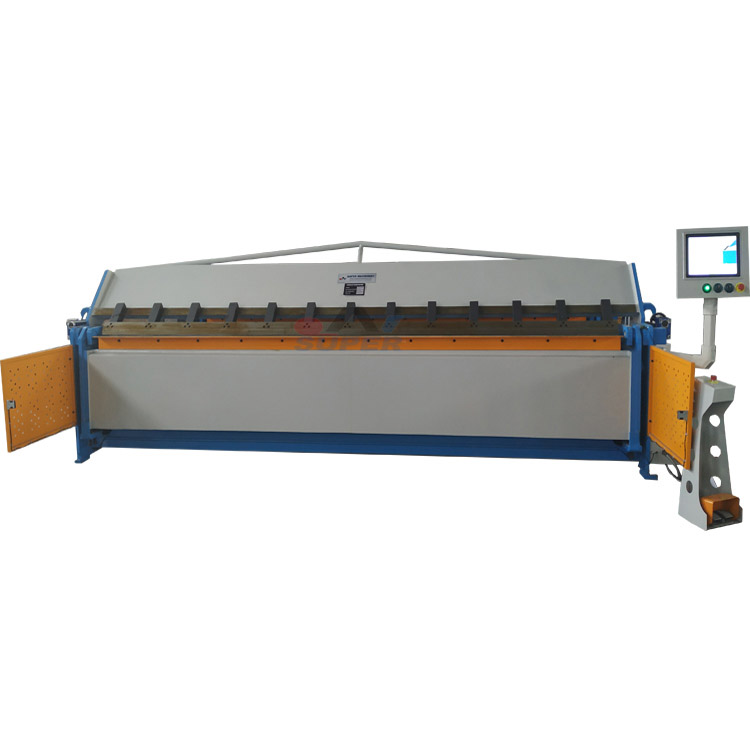

Full Automatic CNC Sheet Metal Folding Machine
Structural & Operating Features;
* Hydraulically operated folding and clamping beam for efficient heavy duty operation.
* High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
* High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
* Precise electric/ hydraulic controls with manual inching of folding beam.
* Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
* Comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
* Unique electric/ hydraulic control ensures safe and simple operation.
Specifications;
* Up to 4000 mm folding length available - Capacity 4.0 to 6.0 mm available
* High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam
* 24V control wiring – segmented folding tools made from hardened material maximizing life
* Instruction, Hydraulic and Electrical Manuals – CE Marked |
